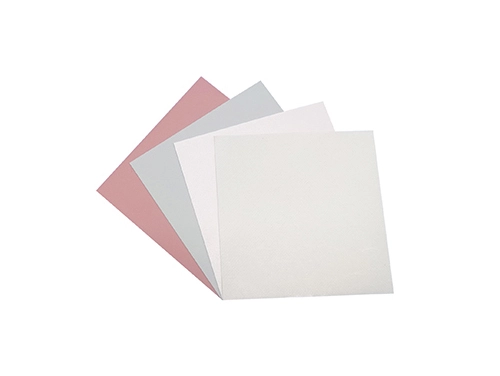

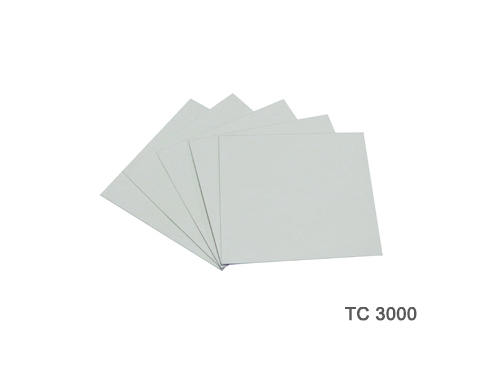

TC Series Electrically Insulating Thermal Sheet

TC series is the high-performance thermally conductive electrically isolating material reinforced with fiberglass, which has excellent cut through resistance and excellent thermal resistance. It can be used in electronic and electrical applications that require both thermal conductivity and lectrical insulation.

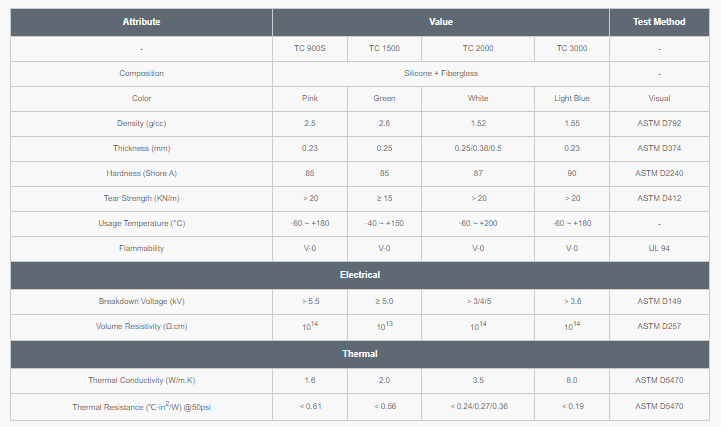

Features: thermal conductivity: 1.6/2.0/3.5/8.0 W/m.K, high cut through resistance, electrical insulating sheet.
Applications: automotive power modules and EV applications, mother board, power supply, heat sink, LCD-TV, notebook, electromagnetic interference (EMI), power electronics, PC, telecom device, wireless hub, DDR ll module, LED lighting, ACH inverters, robot.
