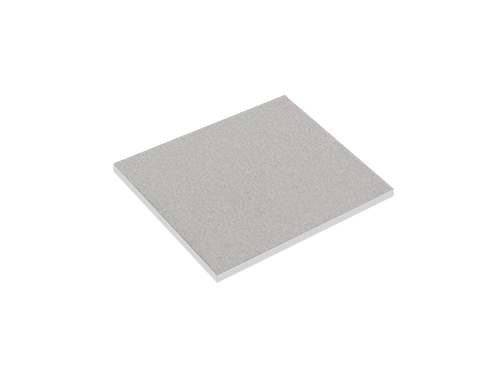

TP1000 Series Thermal Pad
TP1000 is a 10.0W/m.K, high thermal conductive gap filler pad that low thermal resistance and excellent electrical insulation at low compression. It can work stably at -40℃ ~ +150℃ and meet UL 94 V-0 flame retardant grade.
Features: 10.0W/m.K high performance thermal pad, high electrical insulation, wide usage temperature, high compression ratio.
Applications: VRMs, ASICs and DSPs, Network Communication Devices, BGAs, CD ROM/DVD ROM, Automotive Radar.
Subtotal:0
Qty:0
Product Specification
Selected：
Species Specifications Units ProductEdit Selection
Colour
Grey
Destination Country
Product Details
Important Attributes
Product attributes
| Color | Grey |
| Thickness (mm) | 0.4 ~ 5.0 |
| Density (g/cc) | 3.3 |
| Hardness (shore oo) | 60 |
| Usage Temperature (℃) | -40 ~ +150 |
| Flammability | V-0 |
| Shelf Life (month) | 12 |
| Breakdown Voltage (kV/mm) | ＞6.0 |
| Dielectric Constant @1MHz | 7.0 |
| Volume Resistivity (Ω.cm) | 10 to the power of 11 |
Supply Capability
| Qty | Shipping Time |
| 1 - 1000Watts | 15 days |
| > 1000 Watts | Need to negotiate |
