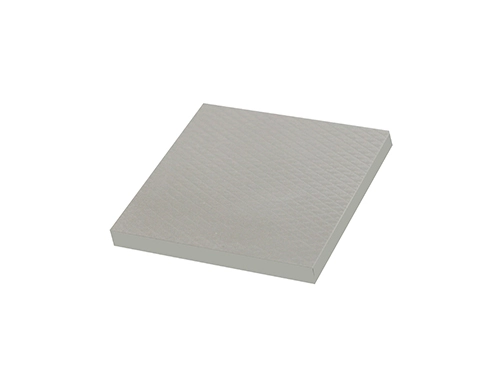

TP150 Series Thermal Pad
TP150-S thermal conductive silicone pad is a product that takes into account performance and economy. It's a uniqu e thermal conductive pad with low thermal resistance, super softness and high compliance. At -40 ~ +150℃ can be fixed to work, meet the requirements of UL 94 V-0 standards flame retardant grade.
Features: ultra soft and highly compliant, naturally tacky, easing application, RoHS compliant.
Applications: telecommunications equipment, consumer electronics, automotive electronics (ECUs), LED lighting, power conversion, drones, desktop computers, laptop, servers, handheld devices, memory modules, NVMe SSD, GPU, CPU, graphics card.
Subtotal:0
Qty:0
Product Specification
Selected：
Species Specifications Units ProductEdit Selection
Colour
Light Grey
Destination Country
Product Details
Important Attributes
Product attributes
| Composition | Ceramic Filler + Silicone |
| Color | Light Grey |
| Thickness (mm) | 0.5 ~ 10.0 |
| Density (g/cc) | 2.5 |
| Hardness (shore oo) | 40 (Thickness ≤ 0.75 Shore OO 55) |
| Usage Temperature (℃) | -40 ~ +150 |
| Breakdown Voltage (kV) | ≥ 7.0 |
| Dielectric Constant (1000Hz) | 6.66 |
| Volume Resistivity (Ω.cm) | 10 to the power of 13 |
| Flammability | V-0 |
| Thermal Conductivity (W/m.K) | 1.5 |
Supply Capability
| Qty | Shipping Time |
| 1 - 1000Watts | 15 days |
| > 1000 Watts | Need to negotiate |
