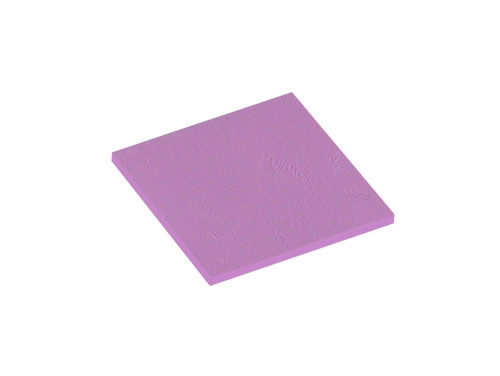

TP400 Series Thermal Pad
TP400 elevates the thermal performance bar, achieving 4.0W/m.K while maintaining a hardness of 55 (shore 00). The low hardness in comparison to thermal conductivity proves that TP400 will meet the demands of your challenging design requirements.
Features: thermal conductivity: 4.0W/m.K, low silicone oil extraction.
Applications: LED lighting systems, power supplies and conversion, semiconductor packaging, IGBTs, automotive, wireless charging, advanced driver assistance systems (ADAS), battery control units (BCUs) .
Subtotal:0
Qty:0
Product Specification
Selected：
Species Specifications Units ProductEdit Selection
Colour
Purple
Destination Country
Product Details
Important Attributes
Product attributes
| Composition | Ceramic Filler + Silicone |
| Color | Purple |
| Thickness (mm) | 0.5 ~ 10.0 |
| Density (g/cc) | 3.1 |
| Hardness (shore oo) | 55 (Thickness ≤ 1.0 Shore OO 60) |
| Usage Temperature (℃) | -60 ~ +200 |
| Breakdown Voltage (kV/mm) | ＞6.0 |
| Dielectric Constant | ＜7.5 |
| Volume Resistivity (Ω.cm) | 10 to the power of 13 |
| Flammability | V-0 |
| Thermal Conductivity (W/m.K) | 4.0 |
Supply Capability
| Qty | Shipping Time |
| 1 - 1000Watts | 15 days |
| > 1000 Watts | Need to negotiate |
