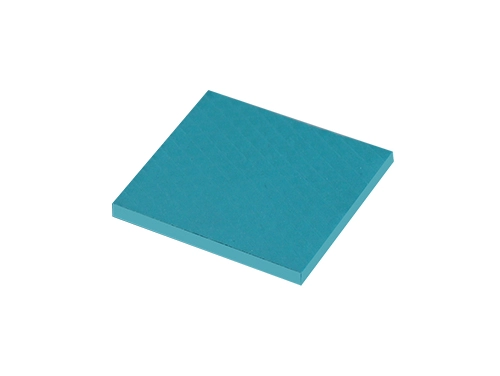

TP500 Series Thermal Pad
TP500 thermal conductive silicone pad is a kind of material with high thermal conductivity. It's double-sided selfadhesive. When assembling with electronic components, it shows low thermal resistance and better electrical insulation characteristics under low compression force. It can work stably at -40 ~ +200℃ and meet the flame retardant grade requirements of UL 94 V-0 standards.
Features: elevated performance gap filler pad, thermal conductivity: 5.0W/m.K.
Applications: networking and telecommunications, IT: BGA, ASIC, VRAM, IC, high speed storage, energy storage systems, power box, CCTV camera, driver controll
Subtotal:0
Qty:0
Product Specification
Selected：
Species Specifications Units ProductEdit Selection
Colour
Green
Destination Country
Product Details
Important Attributes
Product attributes
| Composition | Ceramic Filler + Silicone |
| Color | Green |
| Thickness (mm) | 0.5 ~ 6.0 |
| Density (g/cc) | 3.2 |
| Hardness (shore oo) | 50 (Thickness ≤ 1.0 Shore OO 60) |
| Usage Temperature (℃) | -40 ~ +200 |
| Breakdown Voltage (kV/mm) | ≥ 6.0 |
| Dielectric Constant @1MHz | 7.4 |
| Volume Resistivity (Ω.cm) | 10 to the power of 10 |
| Flammability | V-0 |
| Thermal Conductivity (W/m.K) | 5.0 |
Supply Capability
| Qty | Shipping Time |
| 1 - 1000Watts | 15 days |
| > 1000 Watts | Need to negotiate |
