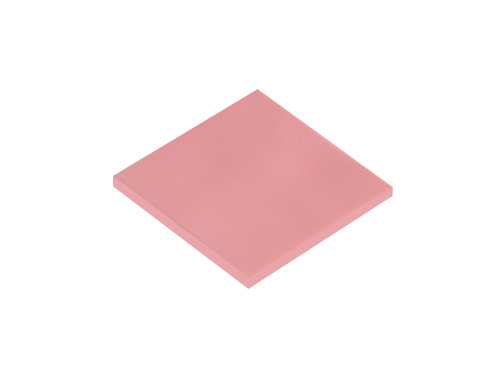

TP600 Series Thermal Pad
TP600 series thermal pad is a material with high thermal conductivity. It's self-adhesive on both sides. When used with electronic components, it exhibits lower thermal resistance and better electrical insulation characteristics under low compression. It can work stably at -40℃ ~ +150℃ and meet the flame retardant requirements of UL 94 V-0 standards.
Features: thermal conductivity: 6.0W/m.K, high conformability, electrically insulating, easy to assembly.
Applications: between electronic components such as semiconductor, IC, CPU, MOS and heat sink, LCD-TV, radio devices and equipment, both analogue and digital, and all the accompanying accessories (GPS receivers, switching units, radio bridges, etc.).
Subtotal:0
Qty:0
Product Specification
Selected：
Species Specifications Units ProductEdit Selection
Colour
Warmred
Destination Country
Product Details
Important Attributes
Product attributes
| Composition | Ceramic Filler + Silicone |
| Color | Warmred |
| Thickness (mm) | 0.5 ~ 10.0 |
| Density (g/cc) | 3.285 |
| Hardness (shore oo) | 40 (Thickness ≤ 1.0 Shore OO 50) |
| Usage Temperature (℃) | -40 ~ +150 |
| Breakdown Voltage (kV/mm) | ＞5.0 |
| Dielectric Constant @1MHz | 7.9 |
| Volume Resistivity (Ω.cm) | 10 to the power of 12 |
| Flammability | V-0 |
| Thermal Conductivity (W/m.K) | 5.0 |
| Thermal Resistance (℃ −in2/W, @20psi, 1mm ) | 0.138 |
Supply Capability
| Qty | Shipping Time |
| 1 - 1000Watts | 15 days |
| > 1000 Watts | Need to negotiate |
